Pharmaceutical Roller Compactor | CP 200 | Faytec

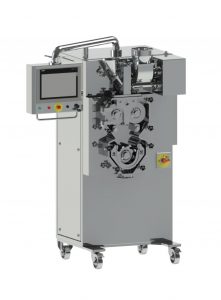

Pharmaceutical Roller Compactor the CP 200 is a fully PLC and sensor controlled lab compactor, which is ideally suited for the development of pharmaceutical products and small production and is supplied by inos in India.
The design of the machine is characterized by its extremely compact design. The stand area is just 80cm x 80cm which makes the use in the isolator very easy. Despite the small outside mass, the roller press is fully equipped and is one of the best on the market with its performance. Another strong feature is the ease of use, which could be achieved by reducing the components by 30%. Together with the option wash in place you get strong combination for the cleaning. In this way, toxic products can be processed and the protection of employees is guaranteed. For further details see below.

CP 200 DEMO

Characteristics and Benefits

Continuous production up to 1 -30 kg/h (with lactose)
High performance press roller feeding with two metering screws
The pressing force is generated by a hydraulic system and is
responsible for the precisely controlled roller gap
Small amounts of test runs from 10 grams possible
Sample drawer for pressed ribbon
Extreme compact design, with short deepness, perfect for isolator
Roller compactor stays on wheels for easy transportation
Vacuum deaeration without additional parts
Professional operating system and data processing
Batch oriented operation
Large 12 inch touch screen which is moveable
Complete IQ / OQ documentation

Options

• Roller surfaces adapted to application and product
• Wash in place WIP
• Connection to peripheral systems (RJ45)
• PAT-system (Process Analysis Tool)
• Data processing to CFR 21/pt11
• Remote service

Applications

Roller compactor for pharmaceutical and food industries
• Tablets
• Encapsulate
• Instant powder
• Antibiotics

Technical Specifications The lab-compactor CP 200 can be used for laboratory use as well as for continuous production. The maximum production amount is up to 30 kg/h.

Efficient large granulation system The CP 200 is equipped with a large granulator rotor diameter of 150 mm. The following standard square sieves are available: 0.8, 1.0, 1.25, 1.5, 2.0 mm, which can be exchanged quickly

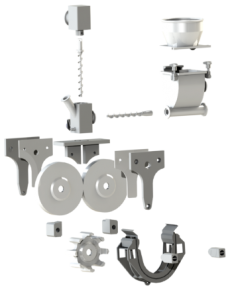

Easy disassembly Easy and very quick disassembly of the machine parts for cleaning. One of the main strengths of the CP 200 roller compactor is the massive reduction of components by 30% for easier handling.

Large dimensions of the press rollers Generously dimensioned press rollers of diameter 200mm helping to feed the most difficult products to the rollers. The transparent security door for monitoring the hole production process.

Remote service The system can be connected via the network connection J45 to the machine supplier.

HMI software All small roller compactor having the same fuctionality like our big roller compactor CP 1000. Excellent data processing with optional PAT system (Process Analysis Tool). Furthermore, the controller is available with the option Data processing according to CFR 21 / part 11 (Audit Trail).

Space for container Space for discharge below the roller compactgor. Enough height to put a container below the machine.

Extremely compact design One of the unique features of the roll press CP 200 is the extremely compact design. In the development, the goal was not to exceed the floor area of 80cm x80cm to easily find space in an insulator.

Mobile roller compactor The compact roller compactor stands on four wheels and can be easily moved to other rooms and fits through a standard 80cm wide door.

Flexible HMI panel Depending on the installation site, the large 12-inch panel can be flexibly turned from right to left, guaranteeing comfortable operation.

Wash in place The option “Wash in Place” is a comfortable solution to shorten the cleaning time even more. As many newly developed products become more and more toxic, binding the water to the dust will protect the user.

Small hand funnel For test runs the smallest amount of product 10g can be processed via the small funnel.

Easy access to the technical area The machine housing is equipped with swing-open doors that are completely sealed with protection class IP65.

Vacuum deaeration When processing products with very light density, the vacuum deaeration can help to in feed easier the product in to the compaction area.

Transparent process aera The hole process of compacting and granulating is visible through a large safety door.
