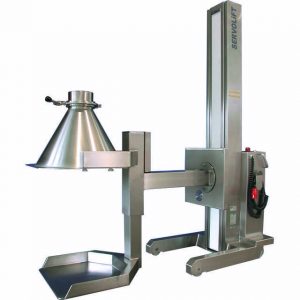

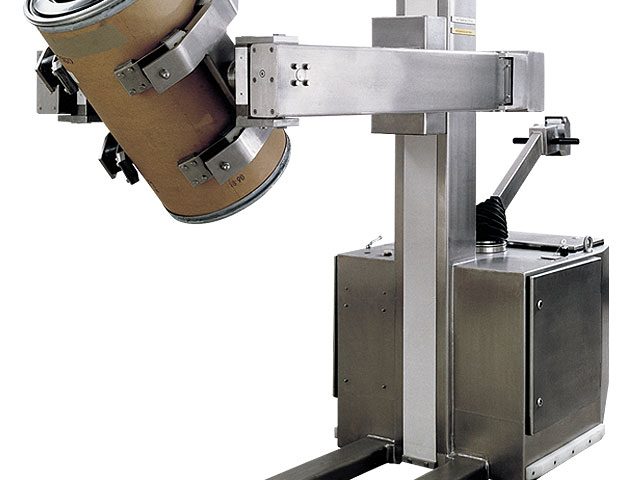

Servolift’s universal drum clamping system is the cleanest, strongest and most reliable drum dumping system available on the market. The system works by pressing the drum into a fixed funnel forming an airtight seal for dust-free, ergonomic transfer of the drum’s products. True to its name, the system can handle any drum type or size for total flexibility.
SERVOLiFT Universal Clamping Drum Handlers offer unique advantages over all other systems on the market such as: cleanest, smallest, and most powerful clamping design; automatic liner retention; telescopic platform and our famous Uni-Body Column Design.
As with all Servolifts we customize each system to meet your particular application.
Typical Applications (loading):
- Tablet Presses
- Encapsulators
- Mills
- Mixing Tanks
- Fluid Bed Processors
- Weigh-off / dispensary drum emptying
- Reactors/Compounding Tanks
- Design Capabilities:
- Lifting Capacity to 2,000 lbs
- Battery Power, Pneumatic or Plug in Electric
- Manual push or Powered Drive
- Lifting Heights to 216″ (higher on request)
- Overhang (reach) to 72″
- Clamping of any drum type (fiber, plastic or steel)
- Explosion proof for all classes and divisions
- Full wash down
- Stainless Steel 304 or 316L
- Any level of finish
- Load Cells can be installed into the arm system
- 100% customizable for any possible application!
Features:
• Available in manually pushed and self propelled versions
• With battery, pneumatic or plug-in electric power
• Single stage or telescopic lifting columns
• Cleanest drum clamping system in the industry
• Funnel and valve quick-connect to lifter without tools
• Designed for all drum types: Fiber, plastic and steel
• Exceeds FDA and USDA requirements for GMP
• Explosion proofing for all dust and solvent atmospheres
• Lift height, overhang, outrigger size and all other specifications all customized to your needs
We offer the cleanest and smallest clamping system in the industry.
For more information Contact Us
