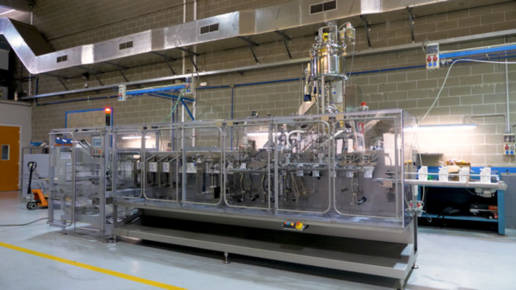

Starting from a pre made pouch of heat-sealable material the NP 185 machine picks de pouches from a customized magazine or a multi format motorized belt, to place it in the machine’s line, starting with a positive opening to fill with product, and while is transferred to the next station stretches the pouches to avoid wrinkles and have a correct sealing at the top of the pouch ensuring their tightness.
Main Features
Ergonomic Monoblock on Balcony Frame.
Machine manufactured on Stainless Steel 304
Adjustable Motorized Belt for multi format and easy change over.
Special opening system for formats with zipper closed.
B&R Automation with Ethernet Connection.
High Resolution Touch Screen 10”.
Remote IP Assistance.
Clean and Accessible Filling Stations
Easy operation
- Watertight Hoppers
- Pneumatic Funnel Vibrator
- Static Pouch Stretching Prior top Seal.
- Special Belt for heavy weight formats.
Wash-down design available on request.
Maximum connectivity with all kinds of peripherals.
Ecofriendly:
- Low maintenance cost
- Low cost in energy consumption
Top Spout Applicator
Device that guarantees accurate spout’s positioning in the upper side of the pouch.
The spout is placed after filling station and before the upper sealing. The group is composed by:
- Level Detector.
- Vibratory bowl feeder.
- Step by step system and spout positioning system.
- Spout welder.
| NP-185 | |
|---|---|
| Dimensiones de sobres | |
| Min | 90 x 110 |
| Max | 190 x 300 |
| Volumen máximo | 1.500 cc |
| Velocidad regulable | Hasta 500 ciclos mecánicos / minuto |
| Consumo eléctrico en kW | 4,2 |
| Datos eléctricos | Standard 220/400V, 3Ph, 50/60 Hz + Tierra |
| Dimensiones máquina | |
| Peso neto (Kg) | 1.500 |
| Dimensiones (mm) | 3,228 x 2,542 x 2,084 |
For more information about NP 185 Contact Us
