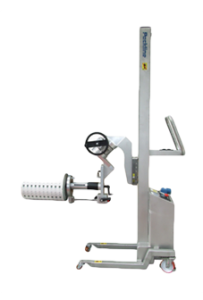

The fully mechanical Vertical Spindle Reel or Roll Lifter from Packline is now available. All manual handling has been eliminated with the fully mechanical Vertical spindle.
Geared Rotation allows the operator to re-orientate the reel or roll just by the rotation of the hand-wheel. And now with the fully integrated ejection plate, the reel slides off the spindle by turning the crank handle which eliminates the need for the operator to manually push the reel off which can cause injury.
Most reel sizes can be catered for and therefore each application is reviewed individually to ensure that you get the most suitable size spindle for your requirements.
Technical Specification:
- Maximum Capacity = 100kg
- Load centre = 659mm from front of column
- Attachment Mass = 30kg
- Main Materials = Stainless Steel 304, Aluminium 6082/T6, Delrin Polypropylene, Brass, Phosphor Bronze
