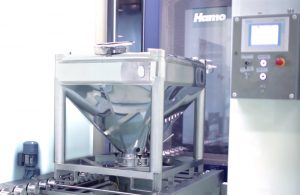

T-BCC: Automated Washing & Drying System for IBCs, Drums, Pallets
Various Cleaning Applications
Usable Chamber
Dimension1500x1500x2000 mm
IBC‘s 550L – 2,100L
• Drums 60L – 200L
• Aluminum Pallets
• Plastic Buckets
• Machine parts and accessories
Two Chamber Washing and Drying
• Automatic sliding doors
• Inflatable door seals
• Completely welded chambers
• Cycle time: Approx. 15 to 20 minutes with cooling to 50°C.
• Water consumption approx 600–800 L/cycle
• Washing lance for interior cleaning of IBC / Drums
• Rotating wash head for cleaning outlet flap of IBC
• Washing system for exterior of IBC, Drums, etc.
Specifications
• All wetted parts 316L SS
• cGMP Design
• FDA compliant components
• Load / Unload height 500 mm
• 3 digital detergent dosing systems
• Conductivity control for final rinse
• Hygienic circulation pump, heat exchanger, circulation piping
• HEPA filtered drying air
• Siemens S7-315 PLC controls
• HMI panel MP 377
• WinCC flexible architecture
• CFR21 part 11 compliant
• Optional Scada doc system
