In our pharma process equipment range, you will find a wide variety of peripheral devices to cover all your needs.

  • Pelletizer
  • Hot cutter
  • Spheronizer
  • Conveyor belt laboratory
  • Cooling conveyor belt
  • Cooling bath
  • Film roller
  • Rewinder
  • Calender
  • Stuffer feeder
  • Side feeder

High Quality Process Equipment

In our process equipment range, you will find a large selection of peripheral devices to cover all your needs. All products are manufactured at our site. This allows us to guarantee the highest quality and to respond to customer requests individually and promptly.

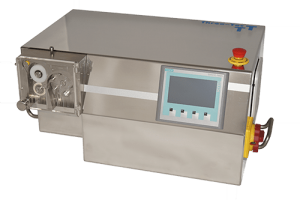

Pelletizer

The pelletizer from Three-Tec can be used to process strands into pellets or granules. The speed of the feed roller and the cutter are independently adjustable. This allows the extrudate feed to be perfectly matched to the extrudate and the pellet length or pellet size to be adjusted between 0.5 and 10 mm during processing.

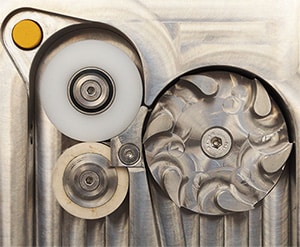

The pelletizer has an integrated control system including a touch panel for user-friendly operation, or can be integrated into a higher-level system via an interface. Depending on the application, rotary knives with different numbers of blades, or different materials are used. The design of the cutting edge enables easy pelletizing of soft as well as hard extrudates.



The compact design allows the instrument to be placed in an isolator or in a laboratory environment with limited space.

  • Compact design
  • User friendly operation
  • Customized rotary knives producible
  • Pellet length 0.1 to 10 mm
  • Suitable for soft and hard extrudates
  • Control via touch panel or external control



For more information Contact Us

The post Pharma Process Equipment | Pelletizer appeared first on INOS.

]]> Downstream | Conveyor | Pelletizer | Spheronizer | Supplier https://inos.in/downstream-conveyor-pelletizer-spheronizer-supplier/ Fri, 12 Nov 2021 06:20:47 +0000 https://inos.in/?p=11217 The post Downstream | Conveyor | Pelletizer | Spheronizer | Supplier appeared first on INOS.

]]>

Conveyor

The conveyor belt was designed for gentle transport of the extruded products which slowly cools down before being supplied to the granulator. Height and angle of the conveyor belt can be adjusted. It can be disassembled and cleaned easily. The conveyor speed is infinitely variable using a potentiometer.

Conveyor

Pelletizer

The granulator was built to directly granulate the extruded products after the water bath or the conveyor belt. The granulate length can be adjusted by means of different cutting knifes or knife speeds. Due to gravitation, the extruded product can also be supplied to the granulator from above.

pelletizer



Spheronizer

The Spheroniser is equipped with an electrically heated hopper jacket or a hopper jacket that is heated by an external tempering device. It is designed for batch volumes of 5 to 250 grams. Different friction discs can be produced according to the customer’s request.

For more information Contact Us
